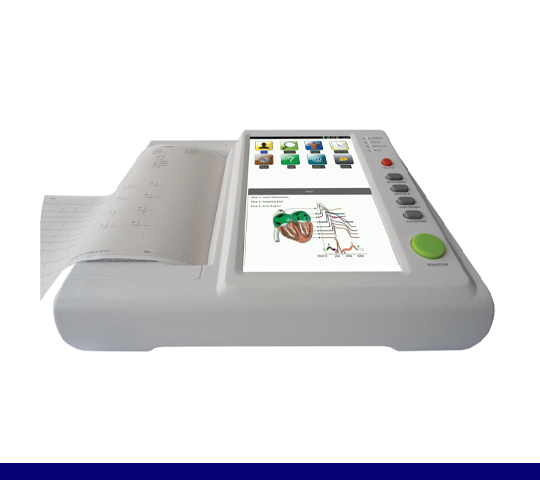

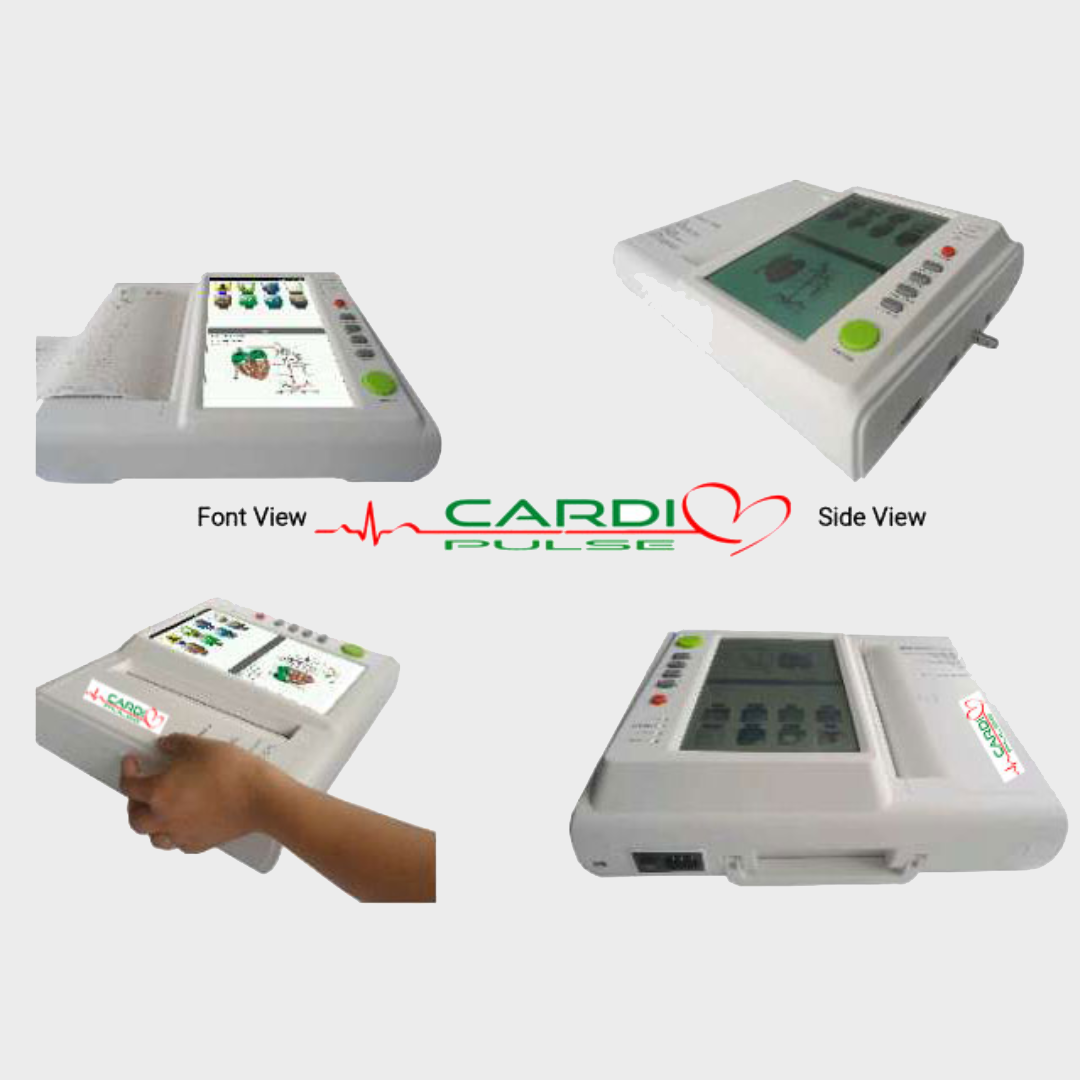

Cardio Pulse 12 Channel ECG Machine

Overview

The Cardio Pulse 12 Channel ECG Machine is a high-performance electrocardiography system designed for advanced cardiac monitoring and diagnosis. It records the electrical activity of the heart using 12-lead simultaneous acquisition, providing highly detailed and accurate ECG waveforms for clinical evaluation.

This machine is widely used in hospitals, cardiac centers, emergency departments, ICUs, and diagnostic laboratories. It supports doctors in identifying critical heart conditions such as arrhythmia, myocardial infarction, ischemia, and other cardiovascular abnormalities.

The device is designed with modern technology, user-friendly operation, and high stability, making it suitable for both routine and emergency cardiac diagnostics. Ultra Tech Bangladesh supplies this model as a brand-new professional medical solution for healthcare facilities.

Why Choose Cardio Pulse ECG Machine 12 Channel?

The Cardio Pulse ECG Machine 12Channel provides fast ECG waveform results with high accuracy.
Healthcare professionals prefer the Cardio Pulse ECG Machine 12 Channel for emergency cardiac diagnosis.

Function Features of Cardio Pulse 12 Channel ECG Machine

The 12 Channel Cardio Pulse ECG Machine comes with advanced features that ensure accuracy, efficiency, and ease of use:

• Modern design with lightweight and compact structure
• Simultaneous acquisition of 12-lead ECG signals
• Full-screen display of 12-channel ECG waveforms
• 10.2-inch color touchscreen with touch and button control
• Advanced signal filters (ADS, HUM, EMG) for noise reduction
• Automatic ECG measurement, calculation, and waveform analysis
• Auto-diagnostic system to assist doctors and reduce workload
• Automatic baseline adjustment for stable ECG recording
• High-resolution thermal printer (216mm paper, 8 dots/mm)
• Synchronized real-time ECG printing
• Frequency response up to 150Hz for accurate waveform capture
• Lead-off and paper shortage detection system
• Built-in rechargeable Li-ion battery (14.8V / 4400mAh)
• AC/DC power operation (100–240V, 50/60Hz)
• Historical ECG data review and reprinting capability
• USB flash and SD card data storage support
• Internal memory capacity for 500+ ECG reports
• RS232 and USB communication interfaces
• ECG workstation software compatibility for PC analysis
• Energy-saving sleep mode to extend device lifespan
• Real-time ECG recording with continuous annotation
• Portable design with hidden handle for mobility
• Adjustable printing thickness with multiple levels

Applications of Cardio Pulse 12 Channel ECG Machine

The 12 Channel Cardio Pulse ECG Machine is used in various medical environments, including:

• Cardiology departments
• Hospital emergency units
• Intensive Care Units (ICU)
• Diagnostic centers
• Routine cardiac screening programs
• Health camps and mobile medical services
• Pre-surgery cardiac evaluation

It is especially important in emergency care, where rapid cardiac assessment is required to save patient lives.

Technical Highlights of Cardio Pulse 12 Channel ECG Machine

• 12-lead simultaneous ECG acquisition system
• Advanced digital signal processing
• High-sensitivity ECG waveform detection
• 10.2-inch TFT color display
• Thermal printing technology with high resolution
• Internal storage for more than 500 reports
• USB and SD card data transfer support
• PC connectivity via ECG workstation software
• AC/DC dual power system
• Stable microprocessor-based control system
• Noise-free waveform filtering technology
• Multi-format patient data management

Power

The device operates on a wide voltage range of AC 100–240V, 50/60Hz, making it suitable for global use. It also includes a rechargeable battery backup system, ensuring uninterrupted operation during power failure, emergency cases, or patient transport.

Importance in Healthcare

The 12 Channel Cardio Pulse ECG Machine plays a critical role in modern healthcare by enabling early detection of heart diseases. ECG testing is one of the fastest and most reliable methods to evaluate cardiac health.

Early diagnosis of conditions such as heart attack, arrhythmia, or ischemia allows doctors to provide immediate treatment, improving patient survival rates significantly. This machine enhances diagnostic speed, accuracy, and workflow efficiency in busy hospital environments.

Its portability and advanced automation also reduce manual workload for healthcare professionals while ensuring consistent and reliable results.

Conclusion of Cardio Pulse 12 Channel ECG Machine

Overall, the Cardio Pulse ECG Machine 12 Channel is an essential tool for modern cardiac care.

FAQ – Cardio Pulse 12 Channel ECG Machine

Q1: What is the Cardio Pulse 12 Channel ECG Machine used for?

A: It is used for detailed cardiac monitoring and diagnosis using 12-lead ECG signals.

Q2: Is it suitable for hospital use?

A: Yes, it is designed for hospitals, ICUs, emergency rooms, and diagnostic centers.

Q3: Does it support automatic ECG analysis?

A: Yes, it has automatic measurement, analysis, and diagnostic functions.

Q4: Can it store ECG reports?

A: Yes, it can store over 500 ECG reports in internal memory.

Q5: Does it have printing capability?

A: Yes, it includes a high-resolution thermal printer.

Q6: Is it portable?

A: Yes, it is lightweight and includes a built-in handle and battery backup.

Q7: Does Ultra Tech supply this Cardio Pulse 12 Channel ECG Machine?

A: Yes, Ultra Tech Bangladesh supplies brand-new Cardio Pulse 12 Channel ECG Machine.
