Description

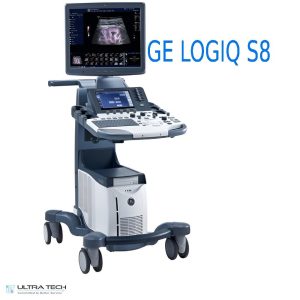

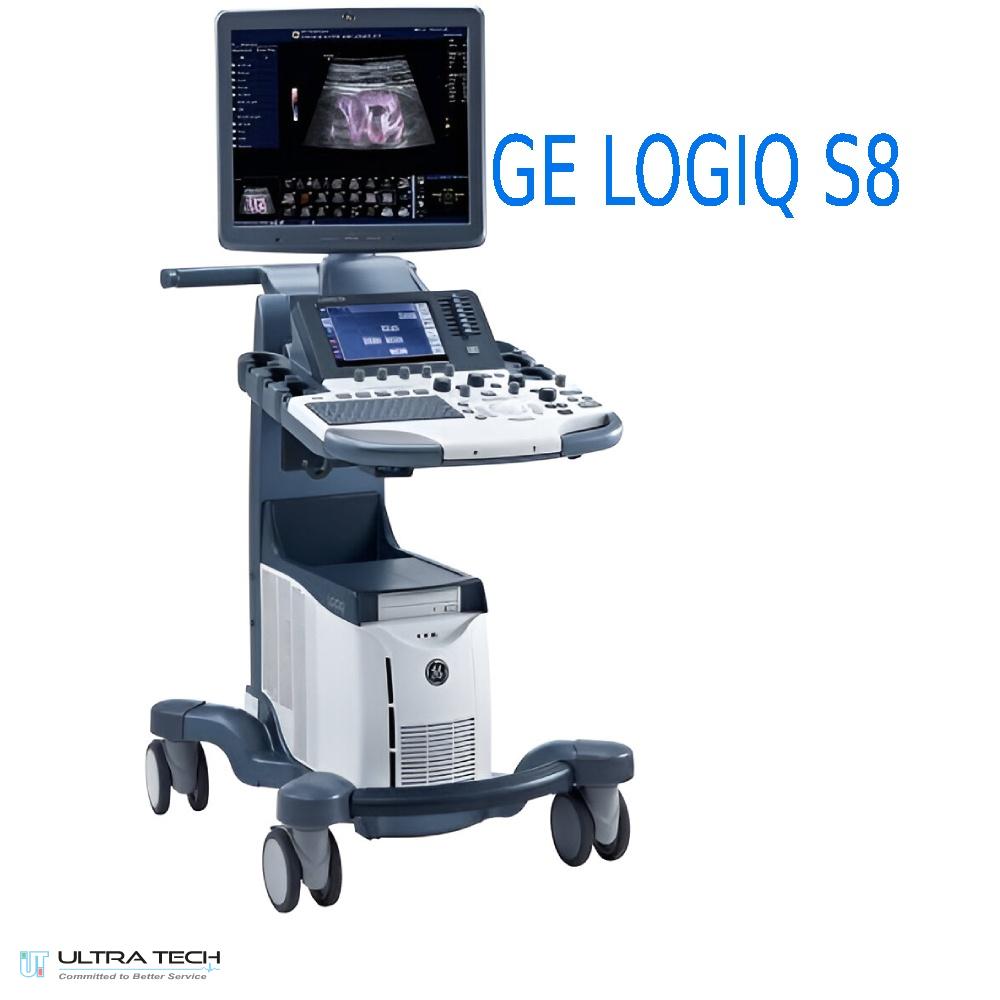

GE LOGIQ S8 Ultrasound Machine
Overview GE Logiq S8
The GE LOGIQ S8 is a compact and powerful trolly based ultrasound machine designed for musculoskeletal (MSK), vascular, anesthesia, emergency medicine, and general imaging applications. The system delivers console-level imaging performance in a lightweight trolly based design, making it ideal for hospitals, clinics, operating rooms, and mobile healthcare environments.
The latest LOGIQ S8 platform offers advanced imaging technologies, AI-assisted workflow tools, strain elastography, and enhanced for fast and confident diagnosis.
The GE LOGIQ S8 is a premium diagnostic ultrasound system designed to deliver exceptional image quality, advanced workflow efficiency, and versatile clinical applications. Built on GE Healthcare’s renowned LOGIQ platform, the LOGIQ S8 combines powerful imaging technologies with ergonomic design, making it suitable for hospitals, diagnostic centers, and specialty clinics.
The system offers outstanding performance for abdominal, vascular, musculoskeletal, small parts, breast, urology, pediatric, and obstetric examinations. Its advanced imaging architecture provides clinicians with enhanced diagnostic confidence while improving patient care and workflow productivity.
How It Works (The Basic Process)
Emission: A transducer, a handheld probe, sends out high-frequency sound waves (MHz range) into the body.
Reflection: These sound waves travel through soft tissues and reflect (echo) back when they hit boundaries between different tissues (like fluid, fat, muscle, bone).
Reception: The transducer detects these returning echoes.
Processing: The machine’s computer converts the timing and strength of these echoes into electrical signals, then processes them into a real-time image (sonogram) on the screen.
Key Components & Concepts of GE Logiq S8
Transducer (Probe): The part that touches the skin, emits sound, and receives echoes; different probes are used for different body parts/depths.
Gain: Controls the brightness/contrast of the image (adjusts overall image sensitivity).
Focus: Narrows the sound beam at a specific depth to improve detail.
Modes: Different displays like B-mode (brightness/2D), M-mode (motion), and Doppler (blood flow color-coded).
Why It’s Used (Applications)
Obstetrics/Gynecology: Pregnancy scans, ovarian cysts, fibroids.
Cardiology: Heart function, blood flow.
Vascular: Detecting clots, narrowing/widening of blood vessels.
Abdominal: Examining liver, kidneys, and gallbladder.
Procedural Guidance: Guiding needles for biopsies or anesthesia.
Safety
Generally considered safe and non-invasive.
Does not use ionizing radiation (unlike X-rays, CTs).
Introducing the LOGIQ™ S8 Ultrasound System by GE Healthcare
The LOGIQ™ S8 is a state-of-the-art ultrasound system designed to deliver personalized, patient-centric, and practical imaging solutions. With its customizable user workflows and productivity tools, the LOGIQ S8 ensures fast and efficient exams, making it the ideal choice for busy healthcare professionals.
Make It Easy
The LOGIQ S8is designed to simplify every aspect of your workflow:
Easy to Operate: Intuitive controls and a user-friendly interface.
Easy to Acquire Diagnostic Images: High-quality imaging with minimal effort.
Easy to Access Features and Applications: Streamlined access to tools and presets.
Easy to Manage a Busy Schedule: Efficient workflows to save time.
Easy to Receive Support: Comprehensive training and resources.
Easy to Afford: A budget-friendly solution without compromising quality.
Key Features of GE Logiq S8
Innovative My Page for Simplified User Controls
Personalized Workflow: Customize the interface to match your preferences.
Large 10.4-inch Touch panel: Easy-to-navigate controls for seamless operation.
Personalized Workflow
Intuitive Console Controls: Simplify your workflow with easy-to-use controls.
My Page Interface: Customize exam presets and preferences on the large touch screen.
Quick Start: Log in, select the exam type, and begin scanning immediately.
Patient-Centric Design
Excellent Image Quality: Ensures diagnostic confidence across a wide range of exams.
Intuitive Image Optimization: Achieve optimal results with minimal keystrokes.
Superb B-Mode Resolution: Exceptional spatial and contrast resolution for detailed imaging.
Comprehensive Exam Coverage
Wide Selection of Probes: Suitable for abdominal, small parts, vascular, cardiac, musculoskeletal, and OB/GYN imaging.
Advanced Imaging Tools (Optional):
B-Flow™: Visualize blood flow without Doppler limitations.
3D/4D Imaging: Acquire and construct volumetric images in real time.
Elastography: Evaluate tissue stiffness.
Smart Stress Echo Package: Integrated solution for stress echocardiography.
Tissue Velocity Imaging (TVI): Measure myocardial velocities for systolic and diastolic function evaluation.
Tissue Velocity Doppler (TVD): Assess segmental myocardial velocity.
Practical and User-Friendly
Enhanced Usability: Adapts to your working style and preferences.
Easy Access to Support:
My Trainer: On-board training modules to accelerate operational confidence.
LOGIQ Club Website: Educational resources to optimize system utilization.
Ergonomic Design of GE Logiq S8 :
Windows® 7 Operating System: Familiar and reliable.

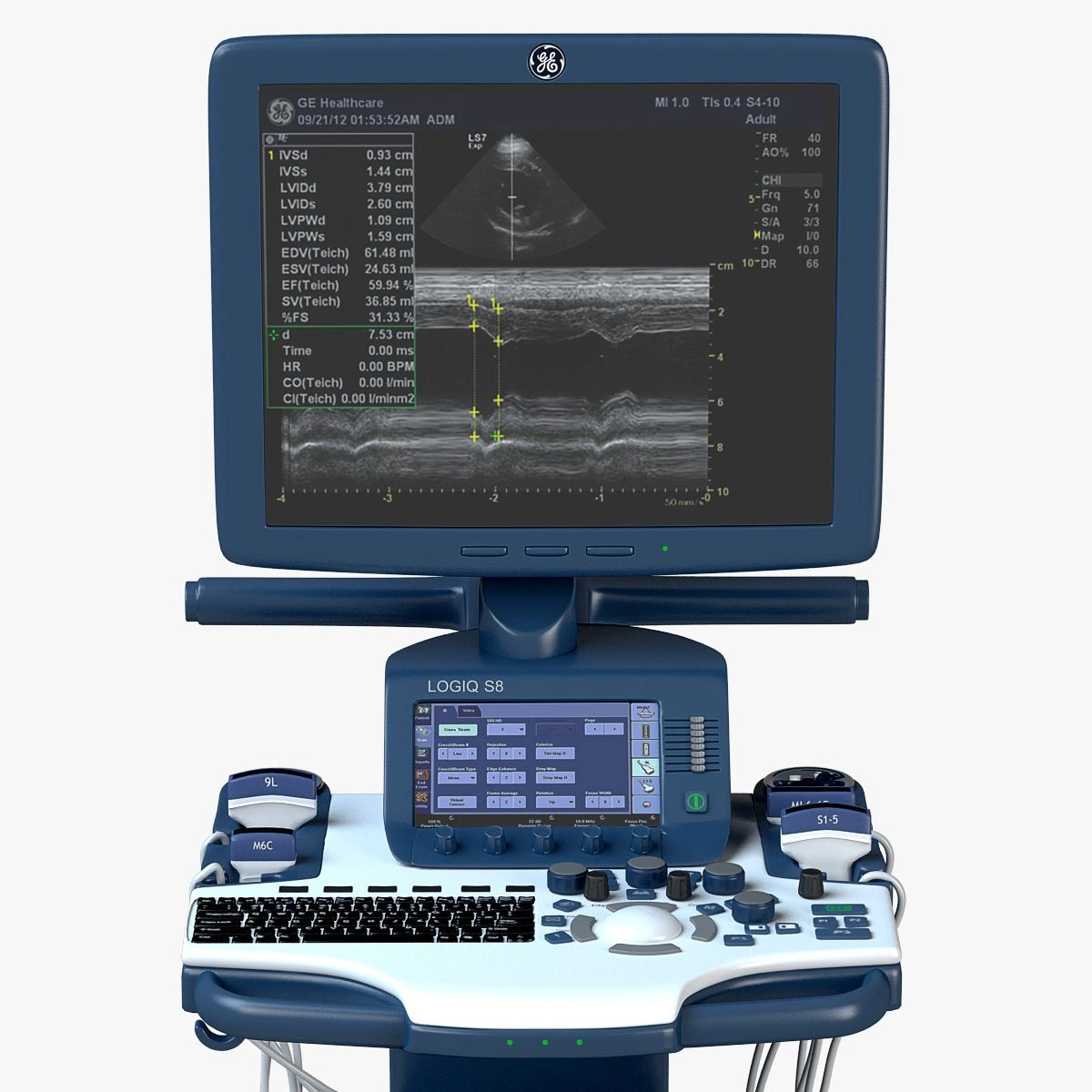

Large 21.5-inch Monitor: Clear and detailed display.

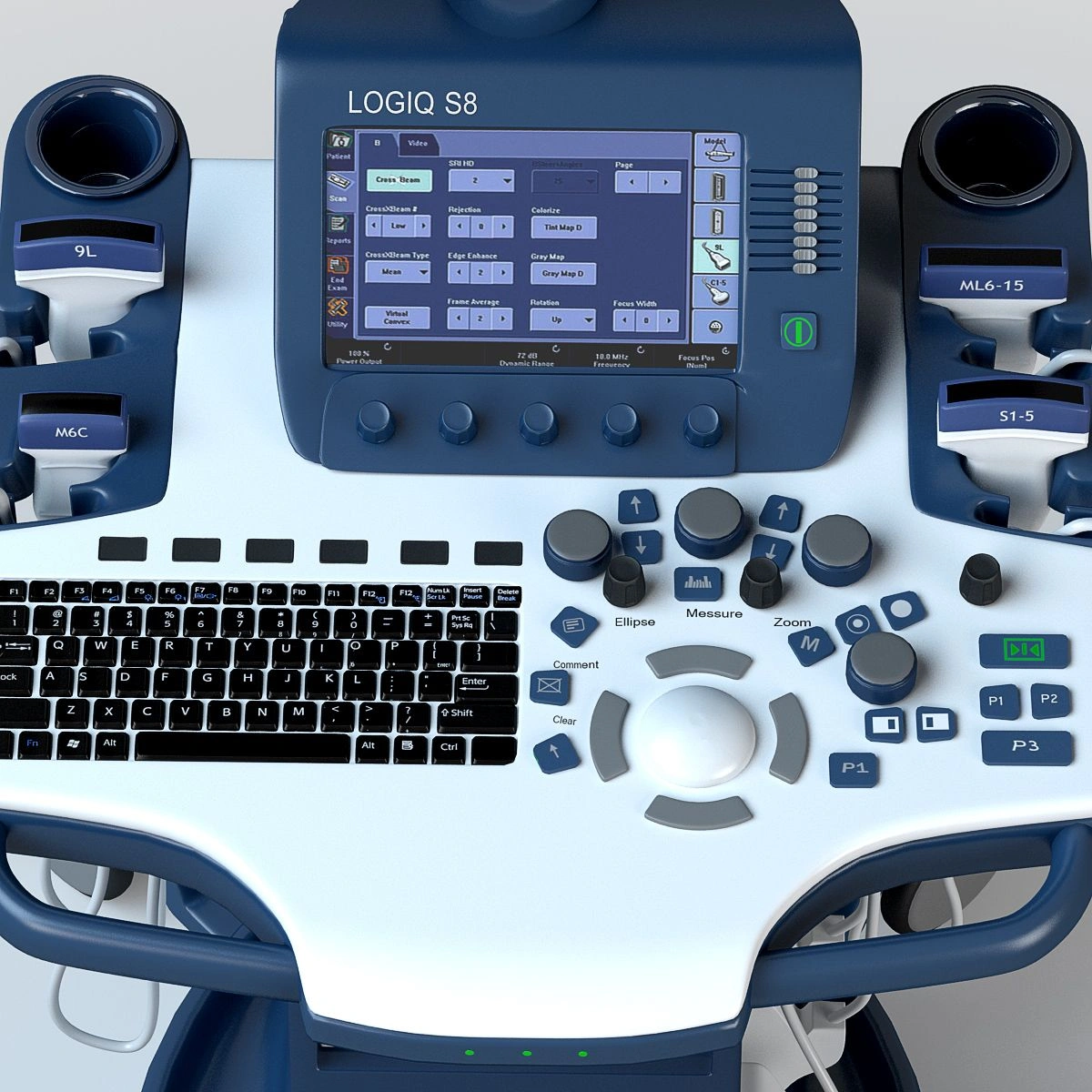

10.4-inch Touch screen: Accessible and easy to use.
Fully Articulating Arm: Adjustable for optimal positioning.
Compact and Lightweight: Enhanced mobility with wireless LAN and Power Assistant battery operation.
Efficiency-Boosting Tools
Automated Tools for Fast Exams:
Measure Assistant: Automates measurements for intensive studies.
Compare Assistant: Streamlines comparison studies by displaying prior and current images side-by-side.
Scan Assistant: Reduces keystrokes and exam time with a single touch.
Productivity Packages: Tailored solutions for thyroid and breast studies.
- Advanced B-Mode Imaging
- High-Resolution Color Doppler
- Power Doppler Imaging
- Pulsed Wave (PW) Doppler
- Continuous Wave (CW) Doppler
- Elastography Support
- CrossXBeam™ Spatial Compounding
- Speckle Reduction Imaging (SRI-HD)
- Auto Optimization Functions
- Advanced 3D/4D Imaging
- Large High-Resolution LCD Monitor
- Touchscreen Control Panel
- DICOM Connectivity
- Raw Data Processing
- Ergonomic and User-Friendly Design
Clinical Applications of GE Logiq S8
General Imaging
- Abdomen
- Liver
- Gallbladder
- Pancreas
- Kidney
Women’s Health
- Obstetrics
- Gynecology
- Fetal Assessment
Vascular Imaging
- Carotid Studies
- Peripheral Vascular Examination
- Venous Assessment
Small Parts Imaging
- Thyroid
- Breast
- Testicular Studies
Musculoskeletal (MSK)
- Tendons
- Ligaments
- Joint Evaluation
Urology
- Kidney Evaluation
- Bladder Assessment
- Prostate Imaging
Pediatrics
- Pediatric Abdomen
- Pediatric Vascular Studies
Advanced Quantification Tools
Auto IMT
Automatic Intima-Media Thickness measurement for vascular assessment.
Auto EF
Automated Ejection Fraction calculation for cardiac evaluation.
Elastography Quantification
Provides tissue stiffness analysis and lesion characterization.
Volume Calculation Tools
Fast and accurate organ and lesion volume measurements.
Vascular Quantification Package
Advanced vascular measurement and reporting tools.
Imaging Technologies
CrossXBeam™ Technology
Enhances tissue border definition and reduces image artifacts.
SRI-HD (Speckle Reduction Imaging)
Improves image clarity while reducing noise.
Tissue Harmonic Imaging (THI)
Provides superior contrast resolution and tissue visualization.
B-Flow Imaging
Improves blood flow visualization without Doppler limitations.
Elastography
Allows assessment of tissue elasticity for advanced diagnostics.
XDclear™ Probe Technology
Offers improved penetration and image uniformity.
Technical Specifications of GE Logiq S8
| Feature | Specification |
| System Type | Premium Diagnostic Ultrasound |
| Monitor | 21.5-inch High-Resolution LCD |
| Touch Panel | 10.4-inch Touchscreen |
| Imaging Modes | B, M, Color, Power, PW, CW |
| Connectivity | DICOM, USB, LAN |
| Applications | General Imaging, OB/GYN, Vascular, MSK |
| Storage | Internal Hard Drive |
| Probe Ports | Multiple Active Ports |
| Workflow | Advanced Automation Tools |
| Reporting | Advanced Reporting Package |
Available Probes for GE Logiq S8
Convex Probes
- C1-5-D
- C1-6-D
Linear Probes
- ML6-15-D
- 9L-D
Endocavity Probes
- IC5-9-D
Cardiac Probes
- M5Sc-D
Volume Probes
- RAB2-5-D
- RIC5-9-D
Ultrasound Features and Specifications GE Logiq S8 :
CrossXBeam
Integrated DVD Multi Drive
SRI HD High Definition Speckle Reduction Imaging
Height and rotation adjustable keyboard
Backlit keyboard
Integrated Gel Warmer
2D, M-Mode
PW/Color/Power Doppler
B-Flow
B-Steer+
Flow Quantification
Stress Echo Templates
Stress echo wall motion
Lightweight
10-inch LCD touchscreen interface
XDClear technology and transducers
Application Ultrasound Probes and Transducers GE Logiq S8:
GE C1-5-D Curved Array Transducer
GE IC5-9-D Endocavitary Transducer
GE 10C-D Micro Convex Array Transducer
GE 9L-D Linear Array Transducer
GE 11L-D Linear Array Transducer
GE ML6-15-D Linear Array Transducer
GE L8-18i-D Intraoperative Hockey Stick Array Transducer
GE S1-5-D Sector Array Transducer
GE M5S-D Sector Array Transducer
GE 6S-D Sector Array Transducer
GE S4-10-D Sector Array Transducer
GE RAB6-D 3D / 4D Curved Array Transducer
GE RIC5-9-D 3D / 4D Endocavitary Probe
GE P2D CW Pencil Probe
Why Choose the GE LOGIQ S8?
Personalized: Customize workflows to match your preferences.
Patient-Centric: Deliver excellent patient care with confidence.
Practical: A smart investment with user-friendly features and advanced tools.
The GE LOGIQ S8 is the ultimate ultrasound system for healthcare professionals seeking consistent image quality, comprehensive application coverage, and ease of use to make timely, confident decisions.
The GE Logiq S8 premier ultrasound system is one of the top models in the GE Logiq ultrasound series. It is armed with some of GE’s most cutting edge, innovative ultrasound image enhancing technology. Included in the Logic S8’s imaging enhancing technology is S-Agile Architecture, High Definition Speckle Reduction Imaging (as opposed to regular SRI – Speckle Reduction Imaging), CrossXBeam compound imaging, Coded Harmonic Imaging (CHI), B-Flow and Logiq View.
Another factor that makes the Logiq S8 so popular is the fact that it is a 3D / 4D shared service ultrasound system. Capable of producing a wide variety of ultrasound images including but not limited to Abdominal, Cardiac, OB-GYN, Small Parts, Stress Echo and Vascular applications. Such a variety of potential applications makes the system appealing to all diagnosticians.
Ultrasound versatility does not simply include potential applications, but it also includes ultrasound probe or transducer compatibility. The more transducers that a system is compatible with, the more simple, economical, and it is to transition between ultrasound systems. The Logiq S8, compatible with well over 10 varieties of ultrasound transducers, including 3D / 4D probes, intracavitary probes, micro-convex transducers, and a few specialty probes (including the P6D and 6Tc-RS transducers).
Why Choose GE LOGIQ S8?
Outstanding Image Quality
Provides exceptional diagnostic confidence through advanced imaging technologies.
Versatile Clinical Applications
Suitable for radiology, vascular, OB/GYN, MSK, and general imaging.
Advanced Workflow
Reduces examination time and improves productivity.
Reliable Performance
Designed for high-volume clinical environments.
Future-Ready Platform
Supports advanced software upgrades and application packages.
Why Choose Ultratech BD GE Logiq S8?
- Trusted Medical Equipment Supplier in Bangladesh
- Professional Installation Service
- Experienced Application Support Team
- Genuine Accessories & Probes
- Competitive Pricing
- Fast Technical Assistance
- Nationwide Customer Support
- Refurbished & Premium Medical Equipment Solutions
Warranty & Customer Support in Bangladesh
Ultratech BD provides comprehensive customer support services including:
- Installation & Commissioning
- Application Training
- Preventive Maintenance
- Technical Troubleshooting
- Spare Parts Support
- Online & On-Site Assistance
Warranty coverage depends on machine condition and purchase agreement.
Frequently Asked Questions (FAQ)
Q: What is the GE LOGIQ S8 used for?
A: It is used for radiology, abdominal, vascular, OB/GYN, musculoskeletal, and general imaging applications.
Q: Does GE LOGIQ S8 support Doppler imaging?
A: Yes, it supports Color Doppler, Power Doppler, PW Doppler, and CW Doppler.
Q: Is the GE LOGIQ S8 suitable for vascular studies?
A: Yes, it provides advanced vascular imaging and quantification tools.
Q: Does the system support elastography?
A: Yes, elastography is available for tissue stiffness assessment.
Q: What probes are compatible with GE LOGIQ S8?
A: Convex, linear, endocavity, cardiac, and volume probes are supported.
Q: Is training available after purchase?
A: Yes, Ultratech BD provides application and operational training.
Q: Does Ultratech BD provide technical support?
A: Yes, both remote and on-site technical support services are available.
