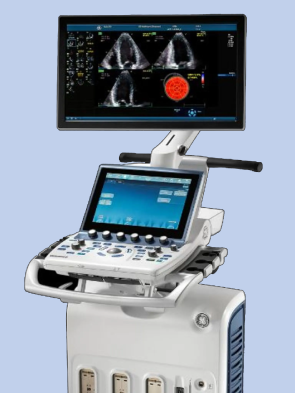

GE ViVid S60N and Vivid™ S60N Ultra Edition

 The GE ViVid S60N and Vivid™ S60N Ultra Edition represent a significant advancement in ultrasound imaging technology. These systems are designed to deliver exceptional image clarity and diagnostic precision, enhancing the capabilities of medical professionals. With a focus on user-friendly interfaces and innovative features, the ViVid S60N series aims to improve patient outcomes and streamline clinical workflows. Their advanced functionalities ensure that healthcare providers are equipped with the tools necessary for effective patient assessment and care.

GE ViVid S60N and Vivid™ S60N Ultra Edition

The Vivid S60N combines the proven breadth, quality and performance of the Vivid product line with a new and innovative software image processing platform: cSound. The Vivid S60N is GE cardiovascular ultrasound’s high end scanner. The cSound architecture benefits all Vivid S60N probes and applications. The Vivid S60N supports the following applications: Adult and pediatric cardiac, coronary, pediatric, neonatal, fetal heart, obstetrics, gynecology, abdominal, small parts, thyroid, adult and neonatal cephalic, peripheral vascular, musculoskeletal conventional and superficial, nerves, urology, intraoperative, intracardiac and intraluminal

Technical Specifications

Electrical Power

• Nominal input voltage: 100-240 VAC, 50/60 Hz
• Rated power consumption: 500 VA

Operating System

• Windows® 10

Console Design

• Five active probe ports
• ECG port
• Integrated HDD
• Multiple USB ports (front/back)
• Integrated DVD-R multi drive (optional)
• On-board storage for B/W thermal printer
• Integrated speakers for premium sound

Touch Screen

• 12″ ultra-high-resolution, wide screen format, color, multi-touch LCD screen

LCD Monitor

• 21.5″ wide screen High-Definition (HD) flicker-free LCD display
