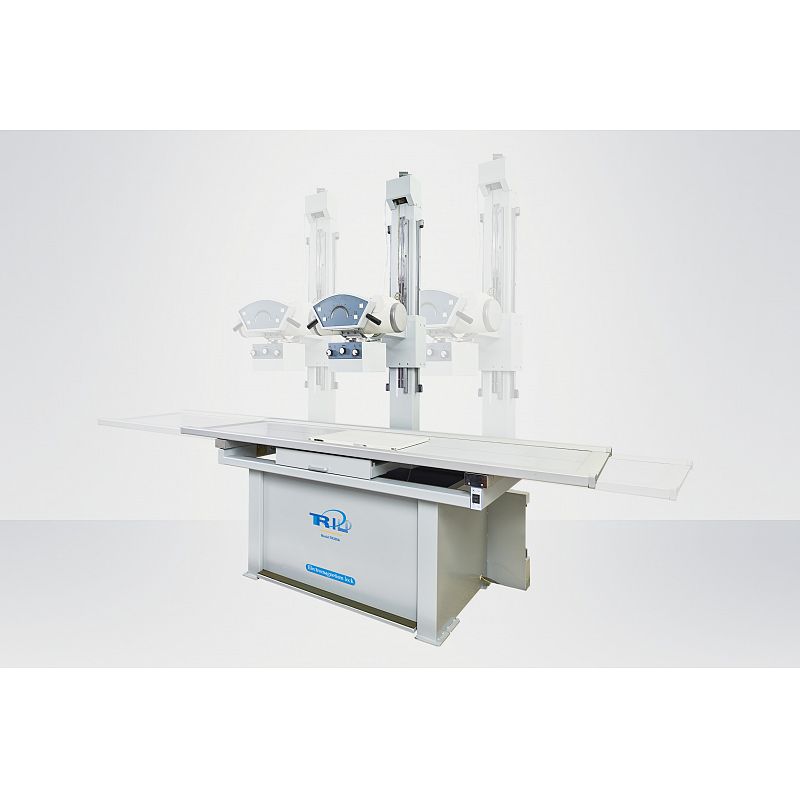

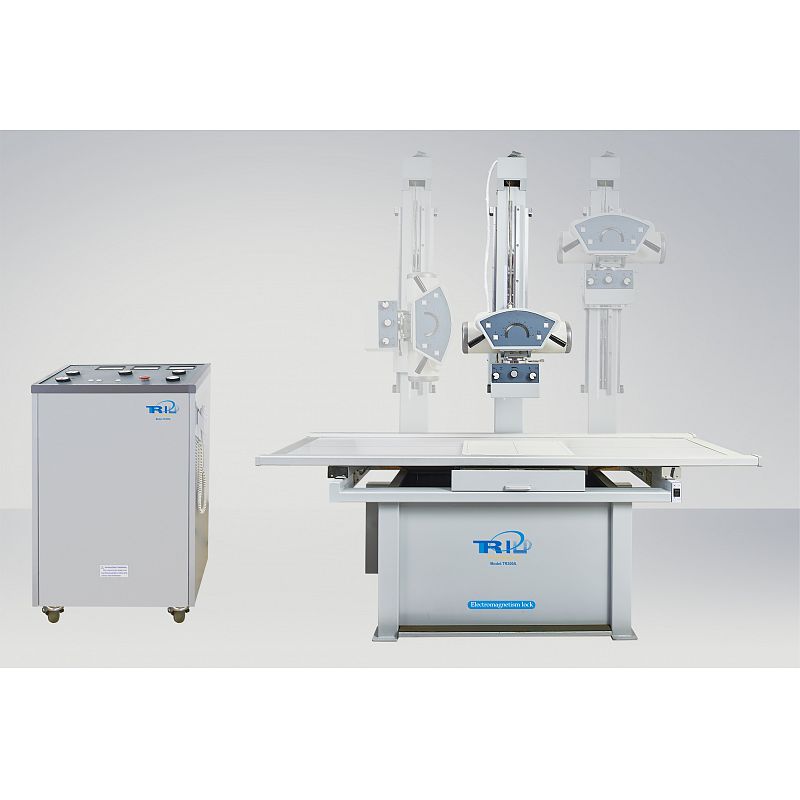

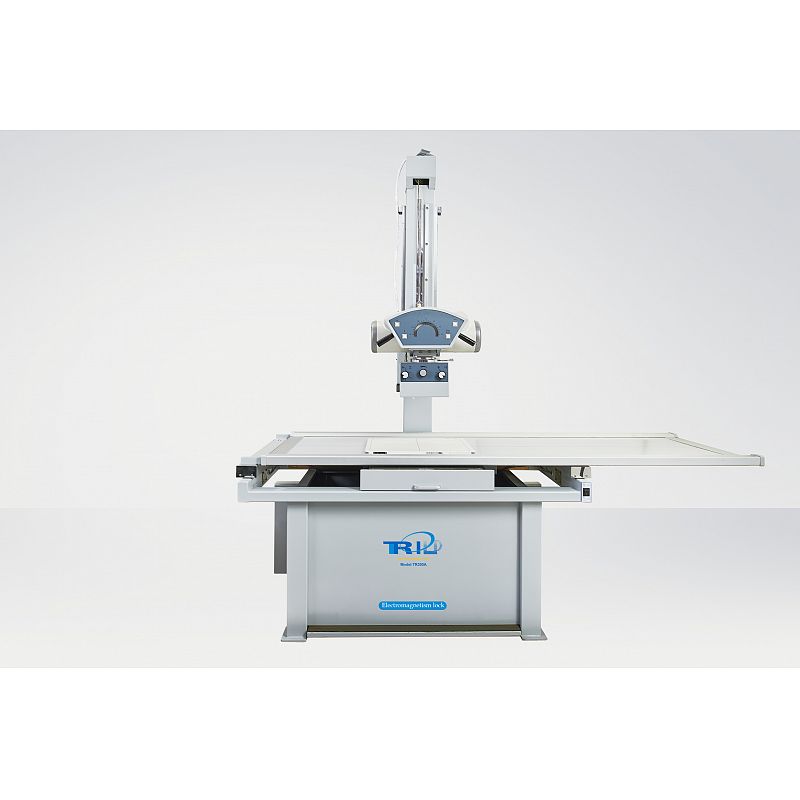

Triup TR-300mA (TR-300A)
Overview
The Triup TR-300mA (TR-300A) is a 300mA stationary diagnostic X-ray machine used in hospitals and imaging centers for general radiography. It is designed to deliver stable, high-quality X-ray imaging for routine diagnostic examinations such as chest, abdomen, and orthopedic imaging.
This system is widely used in small to medium hospitals and clinics due to its reliable performance, flexible positioning, and cost-effective operation.
Key Features
- High frequency generator: The TR-300 uses a high frequency generator that produces high-quality images with low radiation dose.
- Mobile design: The TR-300 is a mobile machine that can be easily transported from room to room.
- Flexible positioning: The TR-300 has flexible positioning arms that allow for easy positioning of the X-ray tube and cassette.
- User-friendly interface: The TR-300 has a user-friendly interface that makes it easy to operate.
- Automatic exposure control: The TR-300 has automatic exposure control that ensures consistent image quality.
- It supports adjustable kV, mA, and exposure time settings for different diagnostic needs.
- The system includes safety interlocking protection to prevent exposure errors during operation.
- It has a rotating anode X-ray tube with dual focus (small and large focal spots) for improved image clarity.
- The mechanical structure allows smooth movement of the X-ray tube and patient table for easy positioning
Applications
The Triup TR-300mA is commonly used for:
- Chest X-ray
- Abdominal imaging
- Bone and joint imaging
- Emergency radiography
- General diagnostic imaging
Advantage
- High image quality: The TR-300 produces high-quality images that are clear and easy to interpret.
- Low radiation dose: The TR-300 uses a high frequency generator that produces low radiation dose, making it a safe and effective machine for use on patients of all ages.
- Versatility: The TR-300 can be used for a wide range of radiographic procedures.
- Ease of use: The TR-300 is easy to operate, even for users with limited experience.
- Portability: The TR-300 is a mobile machine that can be easily transported from room to room.
Safety and Performance
The TR-300A includes interlocking protection for kV, mA, and exposure time to ensure safe operation.
It maintains stable tube current using filament control and compensation systems.
The machine is designed for precise exposure timing, improving image consistency.
Technical Highlights
| Feature | Specification |
| Model | TR-300A |
| Tube Current | Up to 300mA |
| Voltage Range | ~50–125kV |
| Focal Spots | Small & large focus (dual) |
| Application | General radiography |
| System Type | Stationary X-ray unit |
Why Choose Triup TR-300mA?
The Triup TR-300mA is a reliable 300mA diagnostic X-ray machine designed for hospitals and clinics that need stable, high-quality general radiography. It is widely used for routine imaging like chest, abdomen, and orthopedic X-rays.
Here’s a clear, SEO-friendly breakdown of why it is a good choice:
🔹 Powerful 300mA Imaging Performance
The TR-300mA delivers up to 300mA output with 125kV capability, ensuring clear and accurate diagnostic images for a wide range of patients and body parts.
🔹 Suitable for Routine Hospital Use
It is designed for general radiography, including:
- Chest X-ray
- Abdominal imaging
- Bone & orthopedic scans
- Emergency diagnostics
🔹 Stable & Reliable Operation
- Single-phase high-voltage generator
- Stable exposure control system
- Consistent image quality for daily use
🔹 Advanced Safety Features
- kV, mA, and exposure time interlocking protection
- Filament protection system
- Space charge compensation for tube stability
🔹 Flexible & Easy Positioning
- Multi-directional tube movement
- Adjustable radiography table
- Smooth patient positioning for faster workflow
🔹 User-Friendly Design
- Simple digital control interface
- Easy exposure time selection
- Designed for fast learning and operation
Final Summary
You should choose the Triup TR-300mA if you want a cost-effective, durable, and clinically reliable X-ray system that delivers consistent imaging performance for everyday diagnostic use in hospitals and diagnostic centers.
Overall, the Triup TR-300 Medical Radiographic X-Ray Machine is a powerful and versatile machine that is well-suited for use in a variety of medical settings.
Here are some additional specifications for the Triup TR-300 Medical Radiographic X-Ray Machine:
- Tube voltage: 30-125 kV
- Tube current: 5-300 mA
- Focal spot size: 1.5 mm x 1.5 mm
- Maximum field size: 43 cm x 43 cm
Warranty & Customer Support in Bangladesh
Ultratech provides installation, servicing, technical support and nationwide delivery in Bangladesh.
Frequently Asked Questions (Q & A) – Triup TR-300mA
Q1: What is the Triup TR-300mA used for?
A: It is a diagnostic X-ray machine used for general radiography such as chest, abdomen, bone, and emergency imaging.
Q2: What is the power capacity of this machine?
A: It operates with 300mA output and up to 125kV, suitable for routine hospital use.
Q3: What is the weight of the Triup TR-300mA?
A: The approximate weight is around 50 kg, depending on configuration.
Q4: Can it be used in hospitals and clinics?
A: Yes, it is suitable for hospitals, clinics, and diagnostic centers for daily imaging.
Q5: What safety features does it have?
A: It includes:
- kV, mA, exposure time interlock protection
- Filament protection system
- Stable voltage control system
Q6: Is it easy to operate?
A: Yes, it has a user-friendly control system designed for trained technicians.
Q7: What types of imaging does it support?
A: It supports general radiography, including chest X-ray, orthopedic, and abdominal imaging.
Q8: Does it require a special installation room?
A: Yes, a lead-shielded X-ray room with proper safety setup is required.
Q9: Is maintenance required?
A: Yes, regular calibration and maintenance are necessary for safe and accurate performance.
Q10: Does Ultra Tech supply this machine?
A: Yes, Ultra Tech (Bangladesh) supplies the Triup TR-300mA X-ray machine in the local market.
