Description

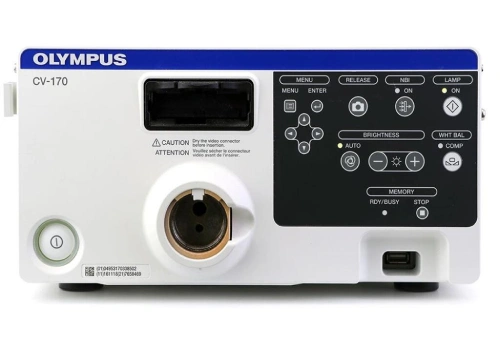

1. Olympus CV-170 Endoscopy Refurbished Video Processor price in Bangladesh.
Buy Olympus CV-170 endoscopy video processor in Bangladesh with installation and warranty support from Ultratech BD.
2. Overview

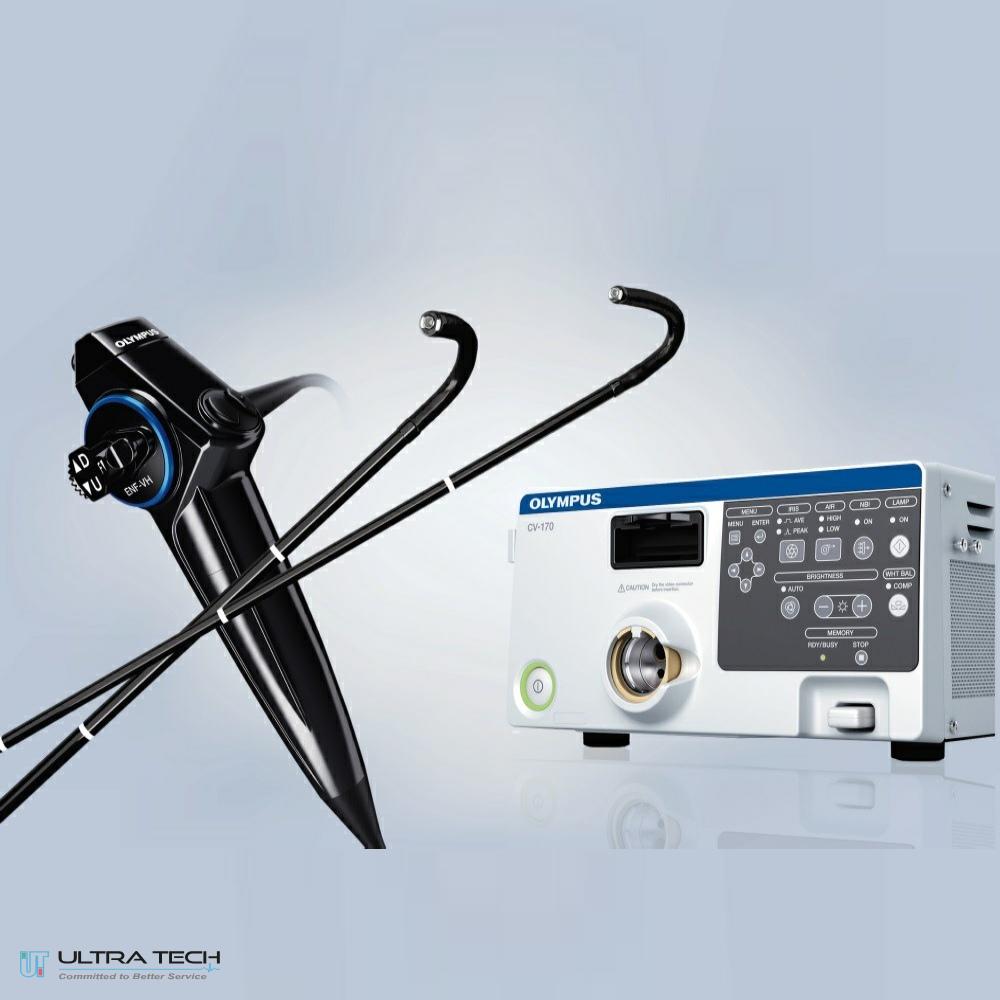

Olympus CV-170 is an advanced HDTV endoscopy video processor designed for high quality gastrointestinal imaging and diagnostic procedures.
3. Main Features
- HDTV imaging capability.
- NBI (Narrow Band Imaging).
- Long-life LED light source.
- Compatible with Olympus Scopes.
- Advanced color reproduction.
- Portable memory (MAJ-1925) is compatible, which is the standard for data management. Simply connect and upload.
- Fast image processing.
- 16:9 and 16:10 output for a HDTV monitor is available. Compatible with analog, HD-SDI, and DVI output.
4. Applications
- Gastroscopy.
- Colonoscopy
- Diagnostic endoscopy
5. Why Choose Olympus CV-170
High Quality Imaging
Olympus CV-170 delivers excellent image quality with HDTV and NBI technology.
Reliable Performance
It is built for continuous performance and accurate diagnosis.
5. Warranty & Support in Bangladesh
Ultratech Bd provides installation, servicing, technical support and nationwide delivery in Bangladesh.
| Power Supply | Voltage | 100-240 V AC (NTSC)/220-240 V AC (PAL); within ±10% |
| Frequency | 50/60 Hz; within ±1 Hz | |
| Rated input | 200 VA | |
| Size | Dimensions (W x H x D) | 295 x 145 x 425 mm |
| Weight | 11.0 kg | |
| Classifi cation(medical electrical equipment) | Type of protection against electric shock | Class I |
| Degree of protection against electric shock of applied part | Depend on applied part.
Also refer to applied part (camera head or videoscope). |
|
| Degree or protection against explosion | The video system center should be kept away from fl ammable gases. | |
| Observation | Examination lamp | LED lamp |
| Analog HDTV signal output | Either RGB (1080/60I: NTSC)/(1080/50I: PAL)
or YPbPr (1080/60I: NTSC)/(1080/50I: PAL) output can be selected. |
|
| Analog SDTV signal output | VBS composite (480/60I: NTSC)/(576/50I: PAL), Y/C (480/60I: NTSC)/(576/50I: PAL),
and RGB (480/60I: NTSC)/(576/50I: PAL); simultaneous outputs possible. |
|
| Digital signal output | HD-SDI (SMTPE 292M), SD-SDI (SMPTE 259M) and DVI (WUXGA, 1080p or SXGA) can be selected. | |
| White balance adjustment | White balance adjustment is possible using the white balance button on the front panel. | |
| Standard color chart output | The “Color bar” or the “50% white” screen can be displayed. | |
| Color tone adjustment | The following color tone adjustments are possible.
• Red adjustment: ±8 steps • Blue adjustment: ±8 steps • Chroma adjustment: ±8 steps |
|
| Automatic gain control (AGC) | The image can be electronically amplifi ed when the light is inadequate due to the distal end of the endoscope being too far from the object. | |
| Contrast | The image contrast can be set to one of the following three modes (N, H, L).
|
|
| Noise reduction | Noise is corrected by image processing. | |
| Iris | The auto iris modes can be selected using the “iris mode” switch on the front panel.
|
|
| Image enhancement setting | Fine patterns or edges in the endoscopic images can be enhanced electrically to increase the image sharpness.Either the structural enhancement or edge enhancement can be selected according to the user setup.
|
|
| Switching the enhancement modes | The enhancement level can be selected from 3 levels (1, 2, and 3). | |
| Image size selection | The size of the endoscopic image can be changed using the “IMAGE SIZE” key on the keyboard. | |
| Freeze | An endoscopic image is frozen using an endoscope or the “FREEZE” key on the keyboard. | |
| Pre-freeze | The image with the least blur is selected from the images captured in the set time period before freeze operation and displayed. | |
| NBI observation | This is one of optical-digital observations using the narrow band observation light. | |
| Reset to defaults | The following settings can be reset to their defaults.
• Color tone • Iris mode • Image enhancement mode • Image size • Contrast • Freeze • Release index • Electronic zoom• Optical-digital observation • Arrow pointer • Stopwatch • Characters on screen • Brightness |
|
| Remote control | The following ancillary equipment can be controlled (specifi ed models only).
• DVR • Video printer • Image fi ling system • Flushing pump • Endoscopic CO2 regulation unit |
|
| Documentation | Patient data | The following data can be displayed in the endoscopic image screen.
• Patient ID • Patient name • Sex • Age • Date of birth • Date of recording (time, stopwatch) • Comments |
| Displaying the record state | The recording state of the following ancillary equipment can be displayed on the monitor.
• Portable memory and internal buffer • DVR • Video printer • Image fi ling system |
|
| Displaying the image information | The following data can be displayed on the monitor.
• Structure enhancement level • Edge enhancement level • Zoom ratio • Color mode |
|
| Advance registration of patient data | Up to 50 patient’s data can be registered.
• Patient ID • Patient name • Sex and age • Date of birth |
|
| Portable Memory | Media | MAJ-1925 (OLYMPUS) |
| Recording format | • TIFF: no compression • JPEG (1/5): approx. 1/5 compression • JPEG (1/10): approx. 1/10 compression | |
| Number of recording images | • TIFF: approx. 227 images • JPEG (1/5): approx. 1024 images • JPEG (1/10): approx. 2048 images | |
| Memory Backup | User settings | Up to 20 user settings can be registered. |
| Memorization of selected setting | The following settings are held in memory even after the video system center is turned OFF.
• Color tone • Iris mode • Image enhancement mode • Color enhancement mode • Contrast • AGC • Color mode • White balance• Brightness adjustment method • Brightness • Air feeding |
|
| Lithium battery | Life: 5 years |
Frequently Asked Questions (FAQ)
Q: What is Olympus CV-170?
A: Olympus CV-170 is an advanced HDTV endoscopy video processor designed for high-quality gastrointestinal imaging and diagnostic procedures.
Q: Does Olympus CV-170 support NBI technology?
A: Yes, Olympus CV-170 supports Narrow Band Imaging (NBI) technology for enhanced mucosal visualization and diagnosis.
Q: Which scopes are compatible with Olympus CV-170?
A: Yes, Olympus CV-170 is compatible with various Olympus gastroscope and colonoscope systems
Q: Is Olympus CV-170 available in Bangladesh?
A: Yes, Olympus CV-170 is available in Bangladesh from Ultratech BD with installation , warranty and technical support.
Q: Olympus CV-170 কি NBI support করে?
A: Yes, it supports Narrow Band Imaging technology.
