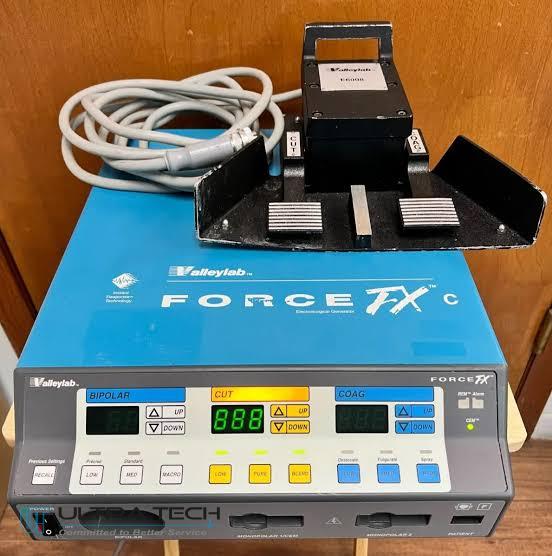

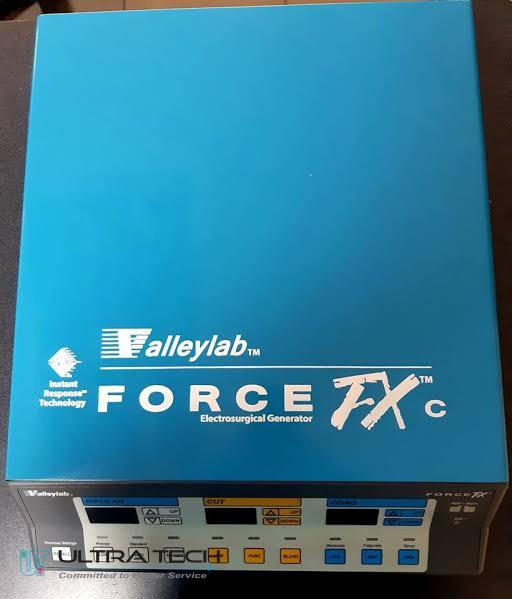

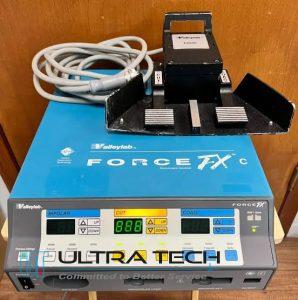

Covidien Valleylab Force FX-C

Overview

The Covidien Valleylab Force FX-C is a high-performance electrosurgical unit (ESU) designed for precise cutting and coagulation during surgical procedures. It is widely used in operation theatres for general surgery, laparoscopic surgery, gynecology, orthopedics, and other advanced surgical applications.

This system delivers consistent energy output, improved safety features, and reliable tissue control for surgeons.

Key Features

• Advanced monopolar & bipolar electrosurgery
• Instant response power control system
• Real-time tissue effect monitoring
• Cut, coagulation, blend modes
• Smooth energy delivery for precision surgery
• Automatic safety alarm system
• Reduced thermal damage to surrounding tissue
• Compatible with wide range of surgical instruments
• Easy digital interface for operation control
• Stable performance during long surgical procedures

Clinical Applications

The Force FX-C is commonly used in:

• General Surgery
• Gynecology & Obstetrics
• Orthopedic Surgery
• ENT Surgery
• Urology Procedures
• Laparoscopic Surgery
• Plastic & Reconstructive Surgery
• Emergency Surgical Procedures

Technical Specifications (General)

Advantages

• Precise cutting and coagulation control
• Reduces surgical bleeding
• Improves surgical accuracy
• Fast response energy system
• Safe operation with monitoring system
• Reliable for long surgical procedures

Package Includes

• Force FX-C main generator unit
• Monopolar handpiece
• Bipolar accessories
• Patient return electrode pad cable
• Power cable
• User manual

REM™ Contact Quality Monitoring System

• Measurement Frequency: 80 kHz ± 10 kHz
• Measurement Current: Less than 10 µA
• Acceptable Resistance Ranges: –REM™ pad  5-135 ohms Non-REM™ pad less than 20 ohms
• Acceptance range is 5-135 ohms after REM PolyHesive II return electrode is applied.

Adaptive REM™

• REM™ trip is baseline impedance plus 40%. For example, if the baseline impedance is 30 ohms, the upper level trip approximately 42 ohms. If the pad-patient impedance falls below the baseline impedance, a new baseline is established.

Output Characteristics Bipolar

• Precise Mode:
  Maximum P-P Voltage: 450
  Rated Load (OHMS): 100
  Maximum Power (Watts): 70
  Crest Factor* (Typical): 1.5
• Standard Mode:
  Maximum P-P Voltage: 320
  Rated Load (OHMS): 100
  Maximum Power (Watts): 70
  Crest Factor* (Typical): 1.5
• Macro Mode:
  Maximum P-P Voltage: 750
  Rated Load (OHMS): 100
  Maximum Power (Watts): 70
  Crest Factor* (Typical): 1.5

Monopolar Coag

• Desiccate Mode:
  Maximum P-P Voltage: 3500
  Rated Load (OHMS): 500
  Maximum Power (Watts): 120
  Crest Factor* (Typical): 5
• High Crest Factor* Mode:
  Maximum P-P Voltage: 8500
  Rated Load (OHMS): 500
  Maximum Power (Watts): 120
  Crest Factor* (Typical): 7.0
• Low Crest Factor *Mode:
  Maximum P-P Voltage: 6900
  Rated Load (OHMS): 500
  Maximum Power (Watts): 120
  Crest Factor* (Typical): 5.5
• Spray Mode:
  Maximum P-P Voltage: 9000
  Rated Load (OHMS): 500
  Maximum Power (Watts): 120
  Crest Factor* (Typical): 8

CEM™ Mode

• Monopolar Cut (Low):
  Maximum P-P Voltage: 1000
  Rated Load (OHMS): 300
  Maximum Power (Watts): 100
  Crest Factor* (Typical): 1.5

Monopolar Coag (Dessicate):

• Maximum P-P Voltage: 3500
  Rated Load (OHMS): 500
  Maximum Power (Watts): 70
  Crest Factor* (Typical): 5 * Crest Factor is an indicator of a waveform’s ability to coagulate without cutting

Why Choose Valleylab Force FX-C?

The Force FX-C electrosurgical unit is trusted worldwide for its reliability, precision, and safety. It allows surgeons to perform complex procedures with better control and minimal tissue damage, making it ideal for modern operation theatres.

Warranty & Customer Support in Bangladesh

Ultratech provides installation, servicing, technical support and nationwide delivery in Bangladesh.

FAQ

1. What is the Force FX-C used for?

It is used for cutting and coagulation during surgical procedures in hospitals and operation theatres.

2. Is it monopolar or bipolar?

It supports both monopolar and bipolar electrosurgical modes.

3. Is it safe for long surgeries?

Yes, it provides stable energy output and safety monitoring for long surgical procedures.

4. What surgeries can it be used for?

It is used in general, orthopedic, gynecology, ENT, and laparoscopic surgeries.

5. Does it reduce blood loss?

Yes, it improves coagulation control and reduces bleeding during surgery.
