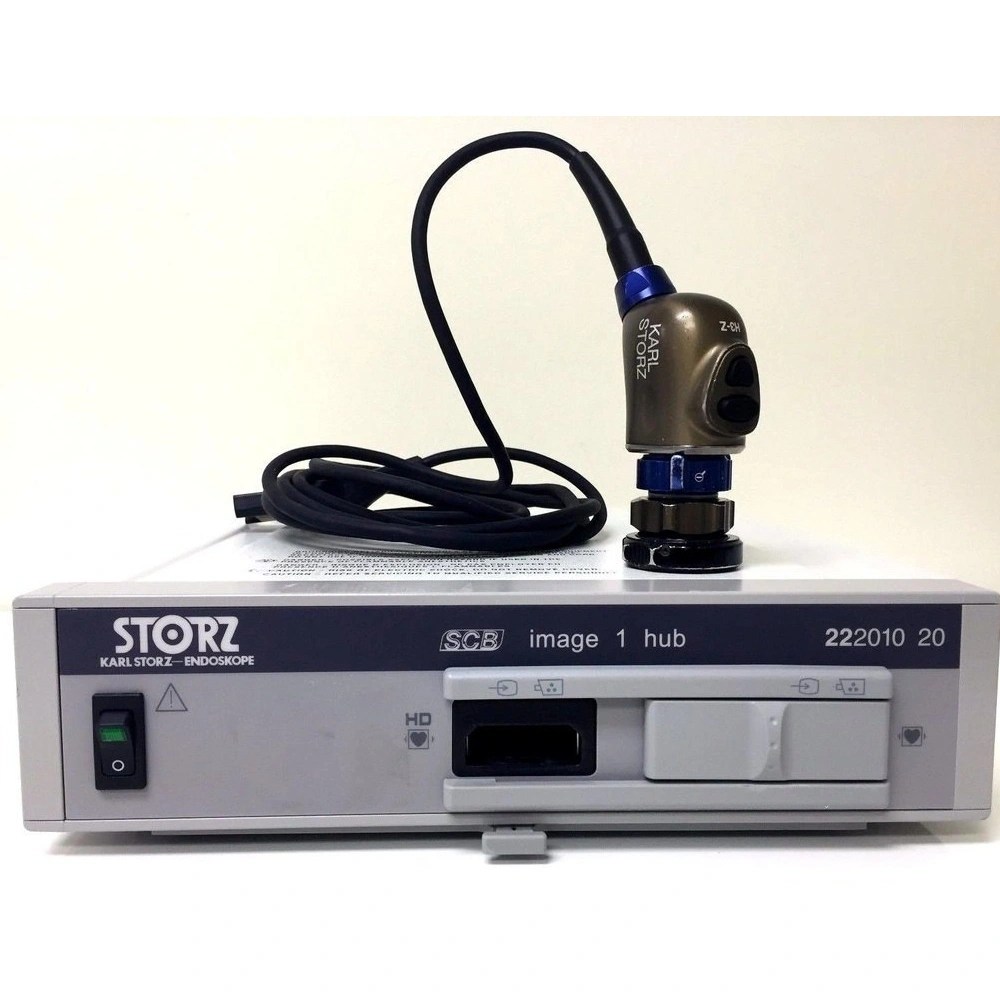

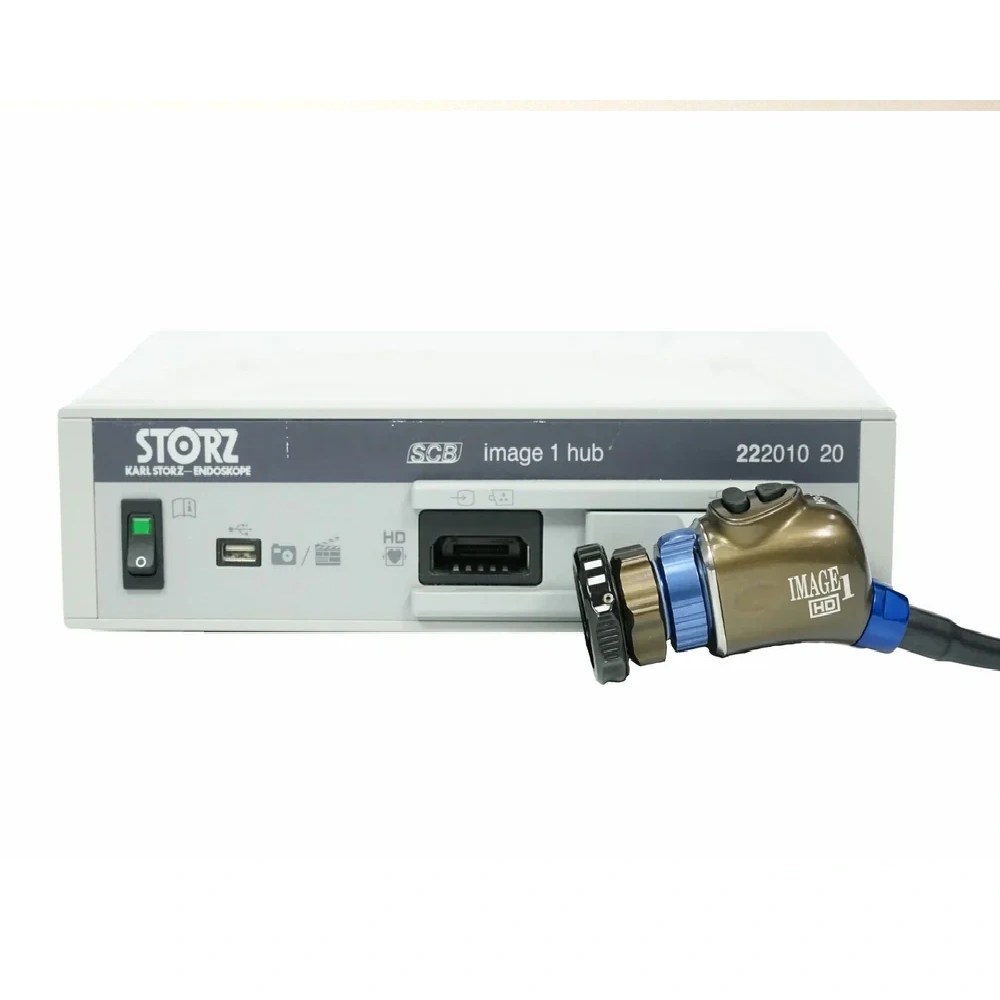

Karl Storz Image 1 Pure HD with HD H3 Camera Head

Karl Storz Image 1 Pure HD with HD H3 Camera Head

Camera functions description The Image 1 video system has the following functions: Capture Still: Captures a still image and for use with a Karl Storz AIDA image and video capture system. Capture Video: Captures a video and for use with a Karl Storz AIDA image and video capture system, Automatic Exposure Control: Patented system automatically sets exposure depending on the available light.

Brightness: Selects the brightness of the image, including Low, Medium, High, Peak, Small Scope A and Small Scope B settings. Peak, Small Scope A and Small Scope B may be used to reduce may be used to reduce glare of small, bright objects in an otherwise dark endoscopic view. A Button Hints: Turns Button Hints display On or Off. If On, displays settings for the camera head buttons.

Button Settings: Determines the programming for both the A and Y camera head buttons simultaneously depending on a specific procedure and/or camera head (i.e. dual white balance for strobe scopy ), (NOTE: Additional options for button programming are available under “Program Head Buttons” feature A\). Color bars: Turns the SMPTE color bar test pattern On or Off. Date and Time Setup: Allows entry of date and time and selects display. Display Type: Allows selection of either Universal or HD 1920X1080 DVI-D monitor types to optimize the image.

Dual White Balance: Performs white balance for two light sources when used intra operatively for strobe scopy procedures,

Enhancement: Electronically controls the level of contrast and definition of the image, including Off. Low and High settings. Special filters may also be available with certain camera heads to maximize fiber optic endoscope images.

A Light Mode: Toggles between Light Source 1 and Light Source 2 for strobe scopy procedures, Insufflator:  Allows control of Karl Storz electronic insufflators Image Capture: Allows still image and video capture to a connected USB storage device and/or USB printer Light Source: Allows selection of light source intensity of25%, 50%, 75%, 100%, or Standby (0%). ft Patient Information Patient Information Display: Turns patient information display Off or On. On enables the user to view, edit, and enter patient information using the options listed below, Patient Information Page Select: Selects page for display (1 -10). Clear Patient Information: Deletes text from all patient information pages, Edit Patient Information: Allows entering or editing of patient information, Program Head Buttons: Allows select features/options to be activated by the camera head buttons (A orY). (NOTE: Additional options for button programming are available under” Button Settings” feature ). SCB • (not available in H3-M HDMicroscopy Head) SCB Text(On/Off): Turns SCB text display On and Off with the exception of SCB Warning/Status messages. This command over rides SCB parameter display set in ‘Configure SCB Display’ below, fl Configure SCB Display: Displays up to eight SCB devices for on-screen monitoring (four on the top of the screen and four on the bottom). NOTE: “SCB Text On/(Off)” command overrides this function, ft SCB Warning/Status Display: Turns SCB “warning” and” status” text On or Off(“alarms” and “errors” cannot be turned off, as these involve personal safety of the patient or physician).ft NOTE: “SCB Text On/(Off)” command does not override this function. Shutter(exposure control): Selects the camera exposure control, including automatic and seventeen manual shutter speeds ranging from 1/60 -1/17,000 second, White Balance: Determines the camera system’s color controls to conform to the color temperature of the light source in use.
