GE-LOGIQ-S8

An ultrasound machine uses high-frequency sound waves sonography to create real-time images (sonograms) of internal body structures, functioning by sending sound waves from a transducer, which bounce off tissues, return as echoes, and are processed by a computer to form a picture, offering a safe, non-invasive look at organs, blood flow, and tissues without using ionizing radiation like X-rays. Key components include the transducer (probe), pulser, beam former, processor, and display, with operators adjusting settings like gain and focus to optimize image quality.

How It Works (The Basic Process)

Emission: A transducer, a handheld probe, sends out high-frequency sound waves (MHz range) into the body.

Reflection: These sound waves travel through soft tissues and reflect (echo) back when they hit boundaries between different tissues (like fluid, fat, muscle, bone).

Reception: The transducer detects these returning echoes.

Processing: The machine’s computer converts the timing and strength of these echoes into electrical signals, then processes them into a real-time image (sonogram) on the screen.

Key Components & Concepts

Transducer (Probe): The part that touches the skin, emits sound, and receives echoes; different probes are used for different body parts/depths.

Gain: Controls the brightness/contrast of the image (adjusts overall image sensitivity).

Focus: Narrows the sound beam at a specific depth to improve detail.

Modes: Different displays like B-mode (brightness/2D), M-mode (motion), and Doppler (blood flow color-coded).

Why It’s Used (Applications)

Obstetrics/Gynecology: Pregnancy scans, ovarian cysts, fibroids.

Cardiology: Heart function, blood flow.

Vascular: Detecting clots, narrowing/widening of blood vessels.

Abdominal: Examining liver, kidneys, and gallbladder.

Procedural Guidance: Guiding needles for biopsies or anesthesia.

Safety

Generally considered safe and non-invasive.

Does not use ionizing radiation (unlike X-rays, CTs).

Introducing the LOGIQ™ S8 Ultrasound System by GE Healthcare

The LOGIQ™ S8 is a state-of-the-art ultrasound system designed to deliver personalized, patient-centric, and practical imaging solutions. With its customizable user workflows and productivity tools, the LOGIQ S8 ensures fast and efficient exams, making it the ideal choice for busy healthcare professionals.

Make It Easy

The LOGIQ S8is designed to simplify every aspect of your workflow:

Easy to Operate: Intuitive controls and a user-friendly interface.

Easy to Acquire Diagnostic Images: High-quality imaging with minimal effort.

Easy to Access Features and Applications: Streamlined access to tools and presets.

Easy to Manage a Busy Schedule: Efficient workflows to save time.

Easy to Receive Support: Comprehensive training and resources.

Easy to Afford: A budget-friendly solution without compromising quality.

Key Features

Innovative My Page for Simplified User Controls

Personalized Workflow: Customize the interface to match your preferences.

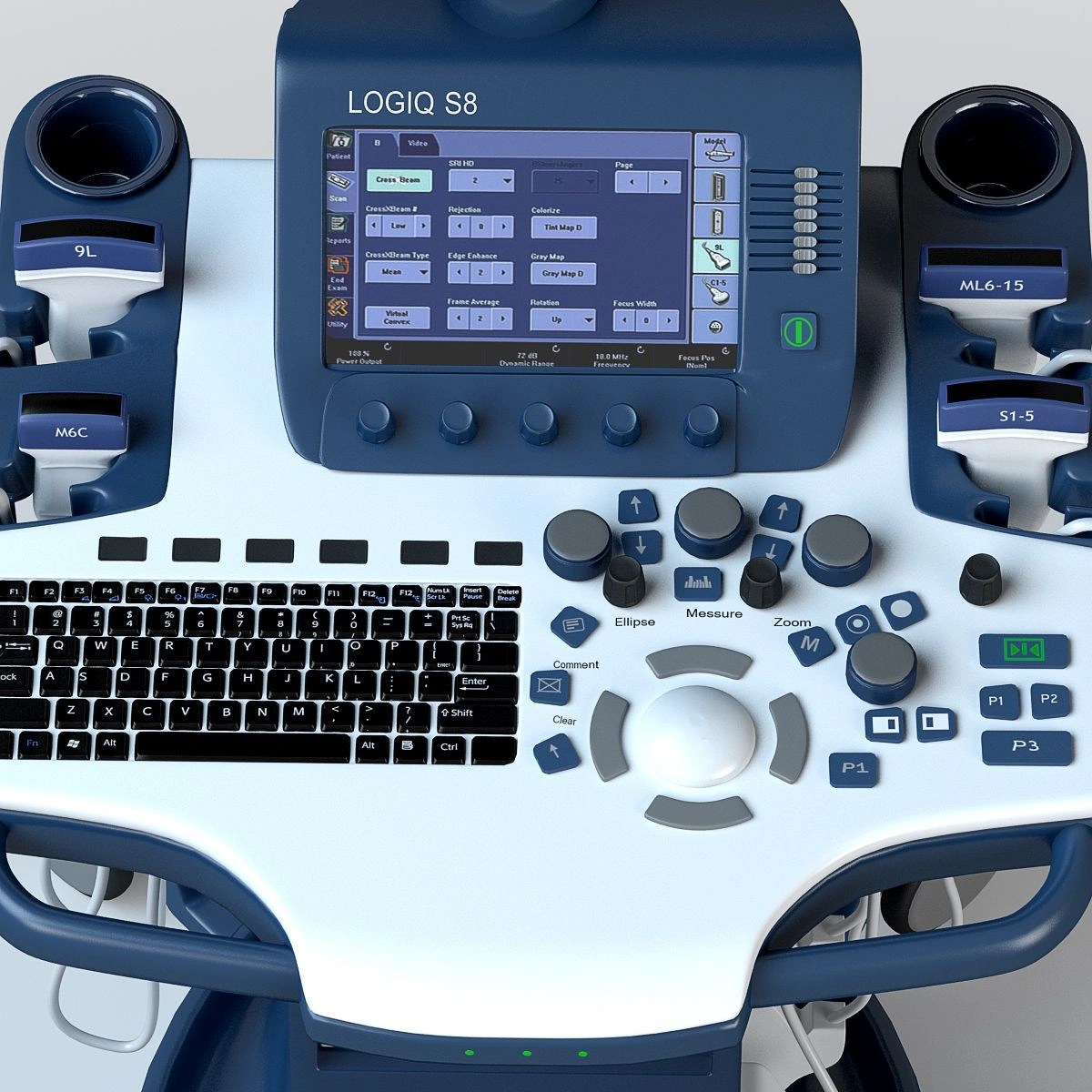

Large 10.4-inch Touch panel: Easy-to-navigate controls for seamless operation.

Personalized Workflow

Intuitive Console Controls: Simplify your workflow with easy-to-use controls.

My Page Interface: Customize exam presets and preferences on the large touch screen.

Quick Start: Log in, select the exam type, and begin scanning immediately.

Patient-Centric Design

Excellent Image Quality: Ensures diagnostic confidence across a wide range of exams.

Intuitive Image Optimization: Achieve optimal results with minimal keystrokes.

Superb B-Mode Resolution: Exceptional spatial and contrast resolution for detailed imaging.

Comprehensive Exam Coverage

Wide Selection of Probes: Suitable for abdominal, small parts, vascular, cardiac, musculoskeletal, and OB/GYN imaging.

Advanced Imaging Tools (Optional):

B-Flow™: Visualize blood flow without Doppler limitations.

3D/4D Imaging: Acquire and construct volumetric images in real time.

Elastography: Evaluate tissue stiffness.

Smart Stress Echo Package: Integrated solution for stress echocardiography.

Tissue Velocity Imaging (TVI): Measure myocardial velocities for systolic and diastolic function evaluation.

Tissue Velocity Doppler (TVD): Assess segmental myocardial velocity.

Practical and User-Friendly

Enhanced Usability: Adapts to your working style and preferences.

Easy Access to Support:

My Trainer: On-board training modules to accelerate operational confidence.

LOGIQ Club Website: Educational resources to optimize system utilization.

Ergonomic Design:

Windows® 7 Operating System: Familiar and reliable.

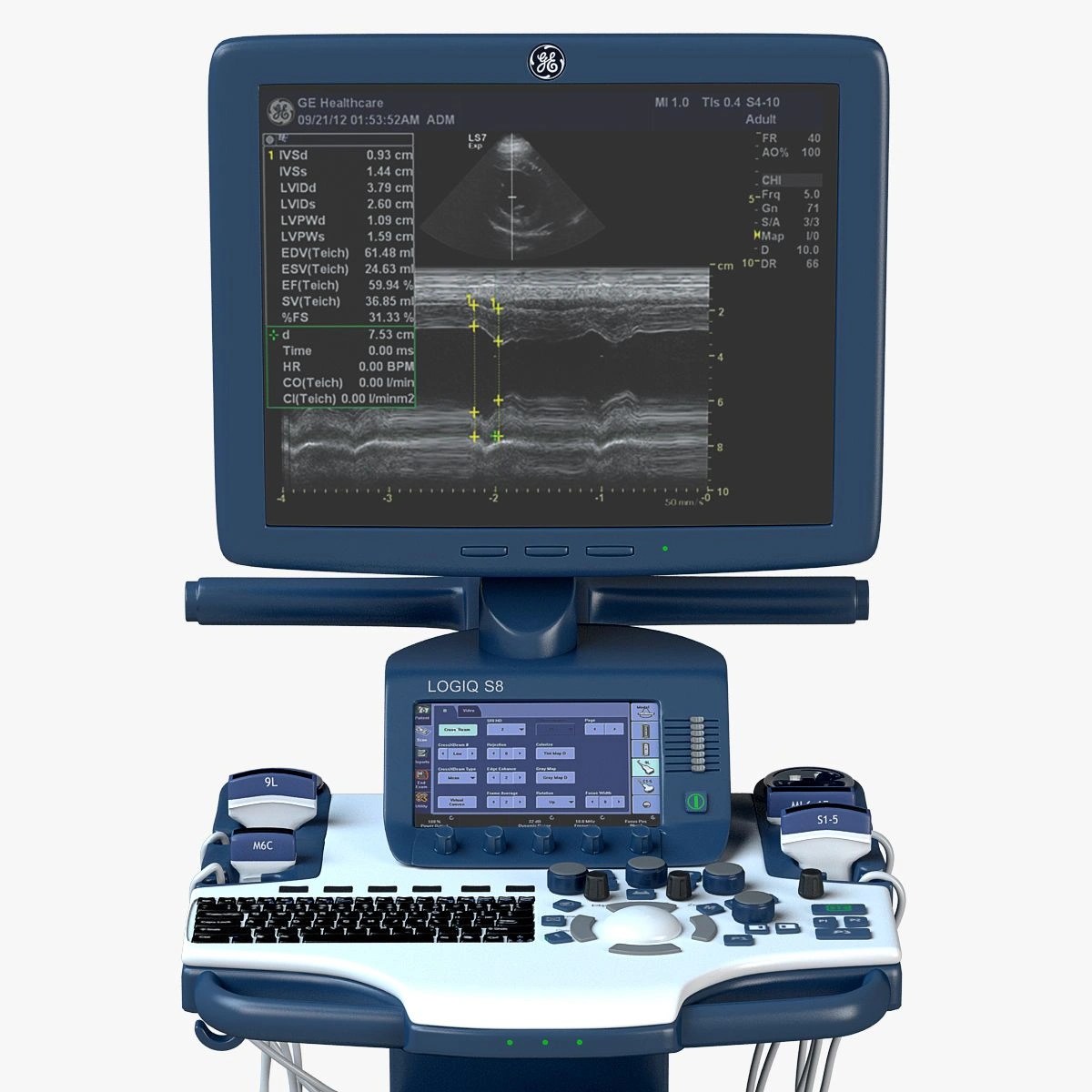

Large 21.5-inch Monitor: Clear and detailed display.

10.4-inch Touch screen: Accessible and easy to use.

Fully Articulating Arm: Adjustable for optimal positioning.

Compact and Lightweight: Enhanced mobility with wireless LAN and Power Assistant battery operation.

Efficiency-Boosting Tools

Automated Tools for Fast Exams:

Measure Assistant: Automates measurements for intensive studies.

Compare Assistant: Streamlines comparison studies by displaying prior and current images side-by-side.

Scan Assistant: Reduces keystrokes and exam time with a single touch.

Productivity Packages: Tailored solutions for thyroid and breast studies.

Why Choose the LOGIQ S8?

Personalized: Customize workflows to match your preferences.

Patient-Centric: Deliver excellent patient care with confidence.

Practical: A smart investment with user-friendly features and advanced tools.

The LOGIQ S8 is the ultimate ultrasound system for healthcare professionals seeking consistent image quality, comprehensive application coverage, and ease of use to make timely, confident decisions.

The GE Logiq S8 premier ultrasound system is one of the top models in the GE Logiq ultrasound series. It is armed with some of GE’s most cutting edge, innovative ultrasound image enhancing technology. Included in the Logic S8’s imaging enhancing technology is S-Agile Architecture, High Definition Speckle Reduction Imaging (as opposed to regular SRI – Speckle Reduction Imaging), CrossXBeam compound imaging, Coded Harmonic Imaging (CHI), B-Flow and Logiq View.

Another factor that makes the Logiq S8 so popular is the fact that it is a 3D / 4D shared service ultrasound system. Capable of producing a wide variety of ultrasound images including but not limited to Abdominal, Cardiac, OB-GYN, Small Parts, Stress Echo and Vascular applications. Such a variety of potential applications makes the system appealing to all diagnosticians.

Ultrasound versatility does not simply include potential applications, but it also includes ultrasound probe or transducer compatibility. The more transducers that a system is compatible with, the more simple, economical, and  it is to transition between ultrasound systems. The Logiq S8, compatible with well over 10 varieties of ultrasound transducers, including 3D / 4D probes, intracavitary probes, micro-convex transducers, and a few specialty probes (including the P6D and 6Tc-RS transducers).

Ultrasound Features and Specifications:

CrossXBeam

Integrated DVD Multi Drive

SRI HD High Definition Speckle Reduction Imaging

Height and rotation adjustable keyboard

Backlit keyboard

Integrated Gel Warmer

2D, M-Mode

PW/Color/Power Doppler

B-Flow

B-Steer+

Flow Quantification

Stress Echo Templates

Stress echo wall motion

Lightweight

10-inch LCD touchscreen interface

XDClear technology and transducers

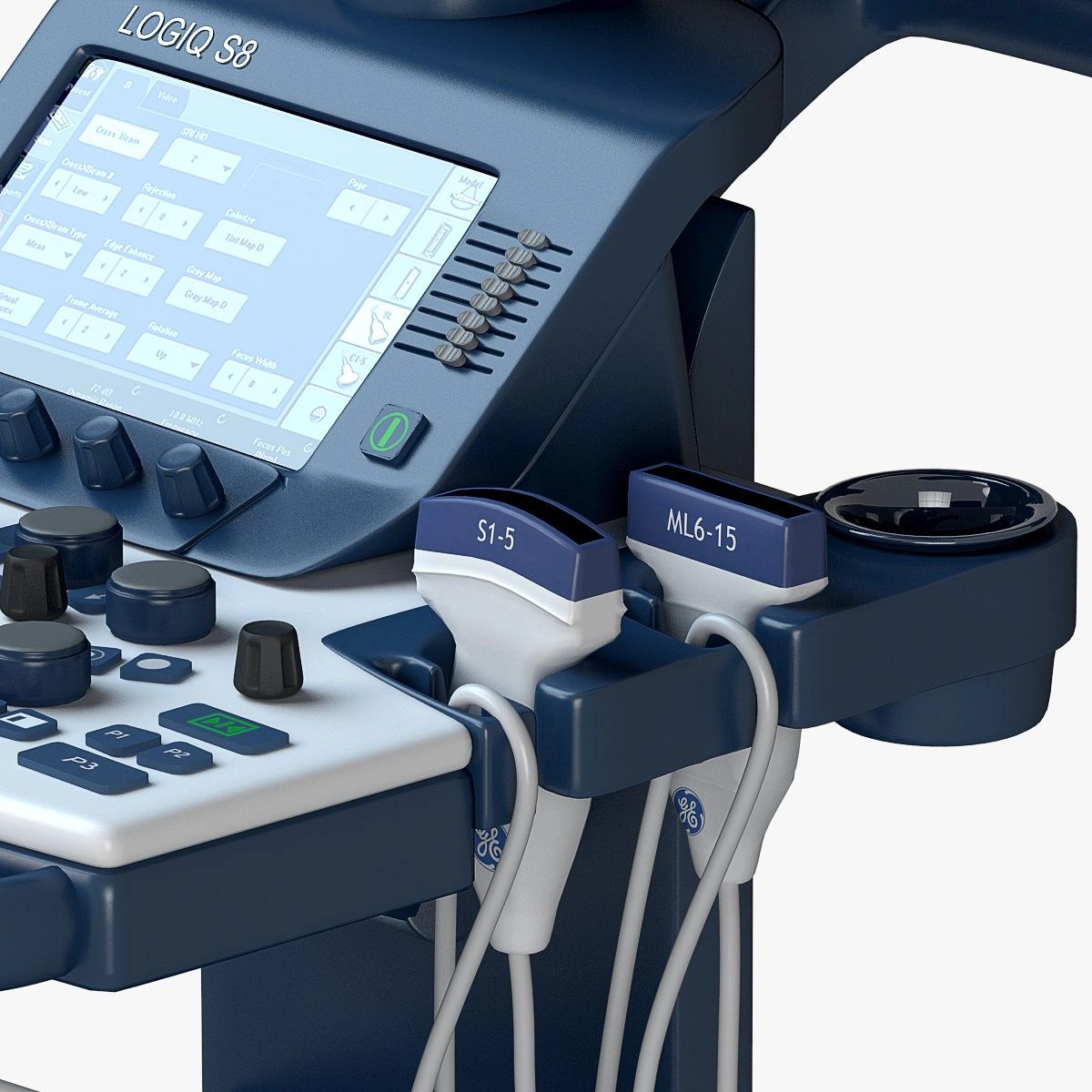

Compatible Ultrasound Probes and Transducers:

GE C1-5-D Curved Array Transducer

GE IC5-9-D Endocavitary Transducer

GE 10C-D Micro Convex Array Transducer

GE 9L-D Linear Array Transducer

GE 11L-D Linear Array Transducer

GE ML6-15-D Linear Array Transducer

GE L8-18i-D Intraoperative Hockey Stick Array Transducer

GE S1-5-D Sector Array Transducer

GE M5S-D Sector Array Transducer

GE 6S-D Sector Array Transducer

GE S4-10-D Sector Array Transducer

GE RAB6-D 3D / 4D Curved Array Transducer

GE RIC5-9-D 3D / 4D Endocavitary Probe

GE P2D CW Pencil Probe

GE P6D CW Pencil Probe
